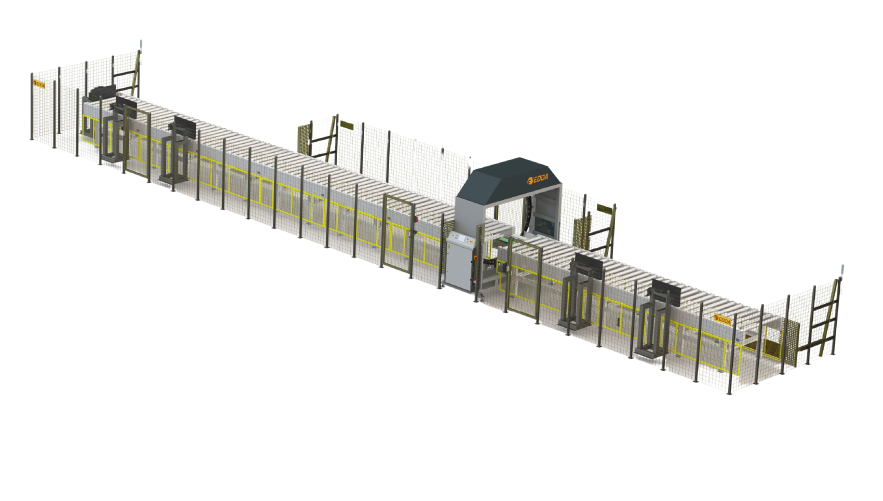

SPINNER 2200 S PALLET WRAPPING LINE


SPINNER 2200 S PALLET WRAPPING LINE


PRODUCT TO WRAP SIZES
Max. Length mm/inch  Unlimited



Min. Dimensions (W x H x L) mm/inch 700 x 400 x 2000

 279/16” x 153/4” x 7847/64”

STRETCH FILM FEATURES
Max. Width  mm/inch   500

1911/16”

Max. Diameter mm/inch  Ø250

 927/32”

Real Core Diameter  mm/inch  Ø76

263/64”

Recommended Thickness  micron 23, 30, 35
MACHINE GENERAL FEATURES
Main Motor Power kW  4,4



Max. Ring Rotation Speed rpm 35



Min. Ring Rotation Speed rpm 10



*Electric Supply Volt - Hz 380 Volt - 50/60 Hz - 3P+1N+1G



Standard Machine Dimensions (W x H x L) mm/inch  4250 x 3150 x 26000

 16721/64” x 1241/64” x 10235/8”

Total Weight* Kg  *10000



CONVEYOR BELT’S FEATURES
**Please contact to Sales Represantative for details
