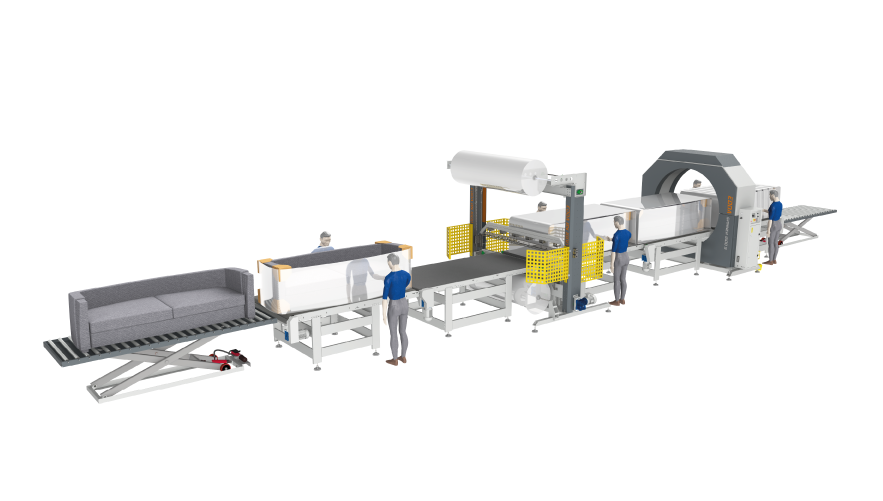

SPINNER 1800 PACKING LINE ←
| PRODUCT TO WRAP SIZES | |||
| Max. Length | Unlimited |
|
|
| Min. Dimensions (W x H x L) | mm/inch | 700 x 200 x 1200* |
279/16’’ x 77/8’’ x 471/4’’ |
| CONVEYOR BELT’S FEATURES | |||
| Useful Length | mm/inch | 2680 |
10533/64’’ |
| Total Length | mm/inch | 2910 |
1149/16’’ |
| Working Height | mm/inch | 950 |
3713/32’’ |
| Electric Motor Power | kW | 0,55 |
|
| Max. Conveyor Speed | meter/min. | 12 |
|
| Max. Load Capacity | kgs | 100 |
|
| STRETCH FILM FEATURES | |||
| Max. Width | mm/inch | 250 |
927/32’’ |
| Max. Diameter | mm/inch | Ø230 |
91/16’’ |
| Real Core Diameter | mm/inch | Ø76 |
263/64’’ |
| Recommended Thickness | micron | 23,30,35 | |
| AIR BUBBLE FILM UNIT | |||
| Max. Film Width | mm/inch | 2000 |
7847/64’’ |
| Max. Film Reel Diameter | mm/inch | Ø650 |
2519/32’’ |
| Reel Core Diameter | mm/inch | Ø20 - Ø76 |
25/32’’~ 263/64’’ |
| Suitable Film Materials | PE Film, PE Air Bubble Film, PE Foam Film, PVC Film |
|
|
| Cutting System Operating Temperature | °C | 50 ~ 150 |
|
| MACHINE GENERAL FEATURES | |||
| Main Motor Power |
kW |
3* |
|
| Max. Ring Rotation Speed | rpm | 50 |
|
| Min. Ring Rotation Speed | rpm | 10 |
|
| *Electric Supply | Volt - Hz | 380 Volt - 50/60 Hz - 3P+1N+1G |
|
| Total Weight | kg | 5000* |
*Depends to machine configuration |
