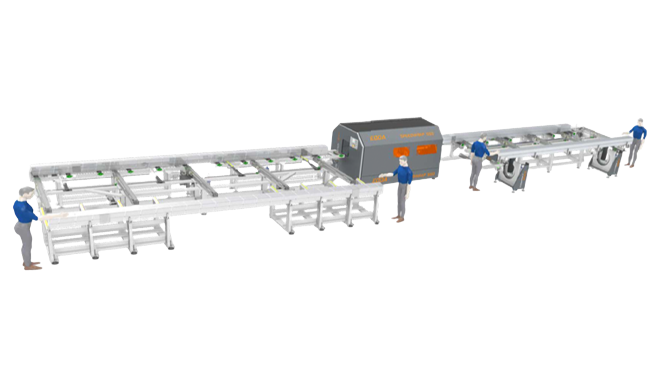

SPEEDWRAP PROFILINE ←
| PRODUCT TO WRAP SIZES | |||
| Max. Length | mm/inch | 6000 |
2367/32’’ |
| Max. Width x Max. Height | mm/inch | 260 x 270 |
1015/64 ’’ x 10 5/8” |
| Min. Dimensions (W x H x L) | mm/inch | 70 x 18 x 1000 |
23/4” x 45/64” x 393/8” |
| CONVEYOR BELT’S FEATURES | |||
| Useful Length | *Check the technical drawing |
|
|
| Total Length | *Check the technical drawing |
|
|
| Working Height | *Check the technical drawing |
|
|
| Electric Motor Power | kW | 0,55 |
|
| Max. Conveyor Speed | m/min. | 36 |
|
| Max. Load Capacity | kg/m. | 100 |
|
| MACHINE DIMENSIONS | |||
| *Check the technical drawing |
|
||
| STRETCH FILM FEATURES | |||
| Max. Width | mm/inch | 170 | 657/ ’’ |
| Max. Diameter | mm/inch | Ø230 |
9 /16’’ |
| Real Core Diameter | mm/inch | Ø76 | 263/64’’ |
| Recommended Thickness | micron | 23,30,25 | |
| Wrapping Technology | Double cartridge units | ||
| MACHINE GENERAL FEATURES | |||
| *Electric Supply | Volt - Hz | 380 Volt - 50/60 Hz - 3P+1N+1G |
|
| **Please contact to Sales Represantative for details |
|
